E-COAT+3 MASTER P Series

E-COAT+3 MASTER P Series devices are pump-fed upper segment devices where pneumatic and electrical parameters are digitally controlled through the front panel. While electrical controls remain dependent on voltage and current, it provides the ability to proportionally adjust the air values of the application pump.

The factory settings, along with 50 different customizable electrical/pneumatic specifications, dual triggering options, PLC automation and bluetooth connectivity, make the E-COAT+3 MASTER the optimal solution for especially advanced manual and automated applications where it is necessary to pump the powder for high surface quality and/or higher powder output.

The pumped device, which can illustrate powder output performance up to 550 g/min for a single pump and 950 g/min for a double pump, offers a micro charge control option below 10 µA. 120kV-120A maximum charging capacity and built-in LED lighting features provide users with a unique coating experience. It can meet different application needs with its automatic and manual options and wide range of accessories.

EQUIPMENT INCLUDED IN THE SERIES

E-COAT+3 MASTER P-H

MANUEL MASTER SET WITH 50LT HOPPER AND APPLICATION PUMP

E-COAT+3 MASTER P-M

MANUEL MASTER SET WITH VIBRATORY BOX FEED AND APPLICATION PUMP

E-COAT+3 MASTER P-H Dual

DUAL MANUEL MASTER SET WITH 50LT HOPPER AND APPLICATION PUMP

E-COAT+3 MASTER P-M Dual

DUAL MANUEL MASTER SET WITH VIBRATORY BOX FEED AND APPLICATION PUMP

E-COAT+3 MASTER P-A

AUTOMATIC MASTER EQUIPMENT BARE KIT WITH APPLICATION PUMP

E-COAT+3 MASTER P-B

MANUEL MASTER EQUIPMENT BARE KIT WITH APPLICATION PUMP

E-COAT+3 MASTER P2-H

MANUEL MASTER SET WITH 50LT HOPPER AND DUAL APPLICATION PUMP

E-COAT+3 MASTER P2-M

MANUEL MASTER SET WITH VIBRATORY BOX FEED AND DUAL APPLICATION PUMP

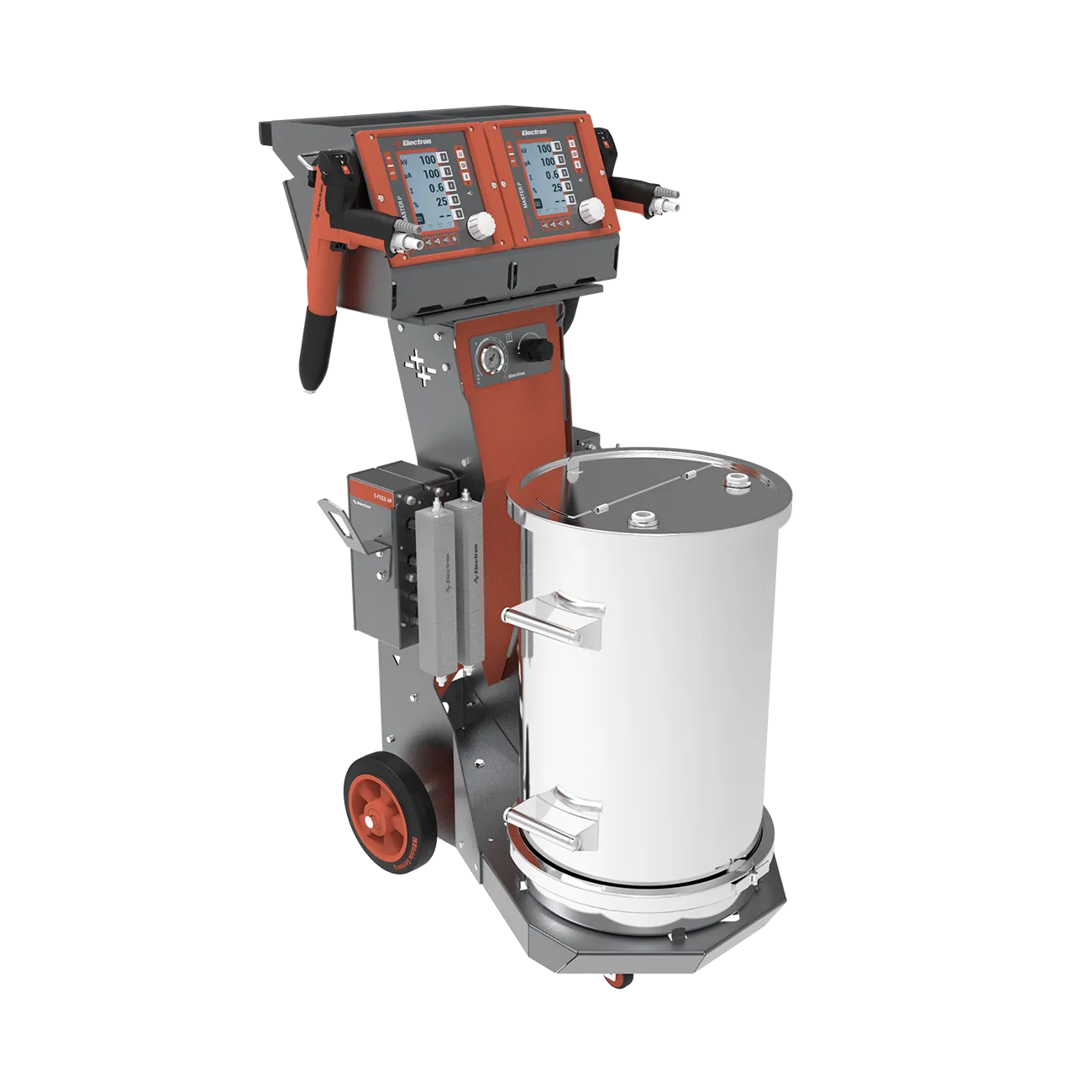

E-COAT+3 MASTER P2-H Dual

DUAL MANUEL MASTER SET WITH 50LT HOPPER AND DUAL APPLICATION PUMP

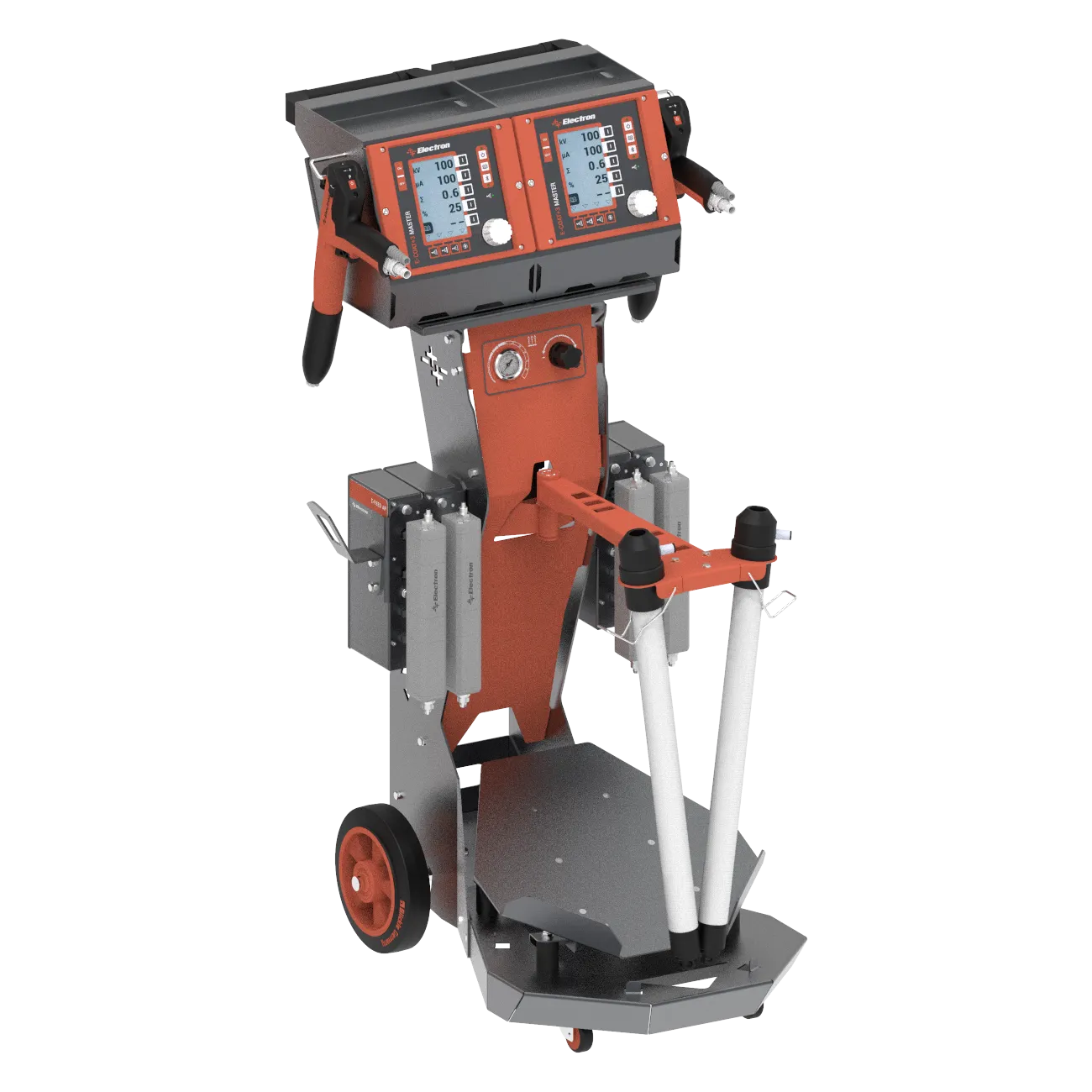

E-COAT+3 MASTER P2-M Dual

DUAL MANUEL MASTER SET WITH VIBRATORY BOX FEED AND DUAL APPLICATION PUMP

E-COAT+3 MASTER P2-A

AUTOMATIC MASTER EQUIPMENT BARE KIT WITH DUAL APPLICATION PUMP

E-COAT+3 MASTER P2-B

MANUEL MASTER EQUIPMENT BARE KIT WITH DUAL APPLICATION PUMP

Advanced Control and Performance:

Accurate static voltage and current control with feedback

Hybrid proportional valve system not affected by inlet pressure changes

Proportional and independent pneumatic adjustment option

Ability to save 50 different prescriptions

4 quick prescription options

Easy operation thanks to the rotating adjustment knob

Remote control feature with buttons on the gun

Compatibility with automation systems thanks toTCP / IP connection

Fast navigation between recipes with double triggering

Quick control of the work with built-in LED lighting

Data log and analysis thanks to Bluetooth connection

World's strong loading performance with 120kV-120µA charging capacity

Excellent coating even on difficult surfaces thanks to microcharging control below10 µA

Single Pump 550 g/min, Dust Transfer Capacity up to 950 g/min for double pump

ACCESSORIES

PLATFORM
CONNECTION DEVICE

SURFACE
CONNECTION DEVICE

WALL
CONNECTION DEVICE


E-COAT+3 MASTER P Control Unit	1 pcs.	1 pcs.	1 pcs.	1 pcs.	2 pcs.	2 pcs.
E-GUN+3 C3 Manual Powder Coating Gun	1 pcs.	-	-	-	-	-
E-FEED+3 AP	1 pcs.	1 pcs.	1 pcs.	1 pcs.	2 pcs.	2 pcs.
Double Conductive Anti Static Powder Hose	12 m	7 m	7 m	7 m	7 m x 2	7 m x 2
Stainless Hopper	-	-	+	-	+	-
Multicolor Suction Hose	-	-	-	+	-	+
Multicolor Vibration Motor	-	-	-	+	-	+
Double Operator Working at the Same Time	-	-	-	-	+	+

Tabloyu sağa kaydır

E-COAT+3 MASTER P-A

E-COAT+3 MASTER P-B

E-COAT+3 MASTER P-H

E-COAT+3 MASTER P-M

E-COAT+3 MASTER P-H Dual

E-COAT+3 MASTER P-M Dual

E-COAT+3 MASTER P Control Unit

1 pcs.

2 pcs.

E-GUN+3 C3 Manual Powder Coating Gun

1 pcs.

E-FEED+3 AP

1 pcs.

2 pcs.

Double Conductive Anti Static Powder Hose

12 m

7 m

7 m x 2

Stainless Hopper

Multicolor Suction Hose

Multicolor Vibration Motor

Double Operator Working at the Same Time


E-COAT+3 MASTER Control Unit	1 pcs.	1 pcs.	1 pcs.	1 pcs.	2 pcs.	2 pcs.
E-GUN+3 C3 Automatic Powder Coating Gun	1 pcs.	1 pcs.	1 pcs.	1 pcs.	2 pcs.	2 pcs.
E-GUN+3 C1 Manual Powder Coating Gun	-	-	-	-	-	-
E-FEED VS Powder Injector	1 pcs.	1 pcs.	1 pcs.	1 pcs.	2 pcs.	2 pcs.
Double Conductive Anti Static Powder Hose	12 m	7 m	7 m	7 m	7 m x 2	7 m x 2
Stainless Hopper	-	-	+	-	+	-
Multicolor Suction Hose	-	-	+	-	+	-
Multicolor Vibration Motor	-	-	+	+	+	+
Double Operator Working at the Same Time	-	-	-	-	+	+

Tabloyu sağa kaydır

E-COAT+3 MASTER P2-A

E-COAT+3 MASTER P2-B

E-COAT+3 MASTER P2-H

E-COAT+3 MASTER P2-M

E-COAT+3 MASTER P2-H Dual

E-COAT+3 MASTER P2-M Dual

E-COAT+3 MASTER Control Unit

1 pcs.

2 pcs.

E-GUN+3 C3 Automatic Powder Coating Gun

1 pcs.

2 pcs.

E-GUN+3 C1 Manual Powder Coating Gun

E-FEED VS Powder Injector

1 pcs.

2 pcs.

Double Conductive Anti Static Powder Hose

12 m

7 m

7 m x 2

Stainless Hopper

Multicolor Suction Hose

Multicolor Vibration Motor

Double Operator Working at the Same Time
